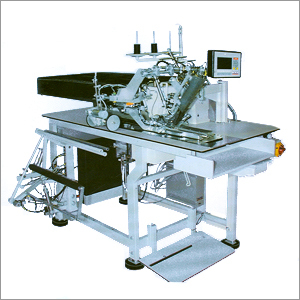

Automatic Pocket Welt
Product Details:
Product Description
PERFORMANCE:
The BASS 3202 is a universal automatic welt pocket unit. The unit can sew all kinds of common welt pockets, straight slanted with or without flap. Sewing with zipper can be integrated without any problem. BASS 3202 sews at a high speed. Clamp transfer and all trimming systems of the sewing unit have their own drive; clamp transfer and corner cutting are controlled fully automatically by step motors.The center knife is driven separately by an electric motor.
Product Feaures:
1) Freely programmable control with a memory of 40 seams
2) Pocket length from 20 to 200 mm, optional upto 240 mm.
3) Needle guage from 8 mm to 30 mm in steps of 2 mm available.
4) Stitch length, sewing speed and trasnfer speed can be programmed individually.
5) Each pocket seam can be programmabed with true back tack or condensed stitches.
6) Automatic flap sensing by photocell.
7) 5 separate programmable laser beam marking lights for precise and easy loading.
Standard Feaures:
1) Two - needle double lockstitch sewing head, can be titled for service.
2) Thread trimming device.
3) Efka Direct Drive motor, AB 286 Power: 220v AC 50-60 Hz
4) Microprocessor control with LCD display and memory chip for data backup.
5) Main clamp drive via regulated step motor with automatic length control from 20 to 200 mm (optional 240 mm).
6) Corner cutting through step motor.
7) Corner cutting adjustment by up to 10 mm in increments of 0.1 mm.
8) Lateral corner knife adjustment through excenter.
9) Corner knife holder with adjustable cutting width.
10) Lowering sequence of the transfer clamp programmable.
11) Each seam start and end can be programmable with back tack or condensed stitches.
12) Double pipping attachment.
13) Clamp backfeed inhibitor.
14) Needle thread monitor.
15) Bobbin rest thread sensor.
16) Needle gauge: 8 to 30 mm in increments of 2 mm.
Technical Data:
Length: 1650 mm
Width: 800 mm
Width with Stacker: 1170 mm
Height: 1300 mm
Adjustment Range: 850 mm to 1150 mm
Standard Features: 200 kg
Standard Features with Stacker: 220 kg
Nominal Pressure: 20 NL / 6 bar
Nominal Voltage: 220 V, 50 / 60 Hz
Alternating Voltage: 220 V, 50 / 60 Hz
Power: 0, 7 KW
B-842 Standard Stitches per min: Max. 3000
B-845 Stitches per min: Max. 3000
Stitch Length: 0,5 - 3,0 mm
Needle System: 2134 - 85
Needle Strength: 90 - 100
Needle Guage: 8 mm - 30 mm
Pieces of piped pocket openings: 1400 - 1600
