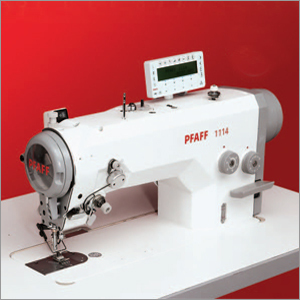

Computer-Controlled, Lockstitch High-Speed ZigZag
Product Details:
Product Description
Computer-Controlled, Lockstitch High-Speed ZigZag Sewing Machine with Direct-Drive
Features:
Flexibility:
■ 8 stitch types with 14 different patterns (e.g. straight stitch, zigzag stitch, two-stitch zigzag, three stitch zigzag) ensure that the machine has a comprehensive application spectrum in many branches
■ Fancy seams and customized stitch patterns can be created and stored on the control panel
■ Simple and easy handling with the 300 mm clearance space under the machine arm
Performance/Quality:
■ Excellent price/performance ratio
■ High productivity – short cycle times and a sewing speed of up to 5,000 s.p.m
■ Electromagnetically controlled functions – No compressed air required
■ Low-maintenance due to the adjustable lubrication system for the hook
Operation:
■ Easily understandable control panel with large display – intuitive operation
■ Very comfortable operation with keys set within reach, automatic backtacking mechanism directly on the sewing head
■ Thread wiper for clean seam start About the Control Panel
The arrangement of the Control Panel is simple and logical, with the function keys, which are used most often, grouped around the bright, two-line crystal display. Activated functions are shown by a cursor belonging to the key (in upward direction).
The optimum Position of the Hook when picking up the loop prevents skip stitches and minimizes thread breakage.
The Optimum Control of the Needle Movement results in a vertical entry of the needle into the material, so that a neat seam is achieved without the material being displaced or seam puckering.
The Titanium-Coated Hook guarantees maximum service life with minimum oil application. This prevents soiling of the thread and the workpiece with oil.
Specifications:
Stitch type : 301/304Max.
sewing speed : 5,000 s.p.m. up to a zigzag stitch width
of 4 mm(standard zigzag stitch)
Max. zigzag stitch : 10 mm depending on the gauge parts set
Max. stitch length : 5 mm
Fabric clearance : 5.5 mm by hand, 10 mm by knee switch,
6 mm by automatic presser foot
Lift-Hook : Horizontal hook, system 107 W
Needle system : 438, DPx5, SY 1965
Take-Up Lever : Rotating type
Clearance space : 300 mm needle to arm clearance
Bobbin Thread Winder : Integrated in the Machine
Lubrication : Adjustable Fresh Oil Lubrication
Function Input : On Control Panel S2B
Machine Drive : Servo Direct Drive System
